Product model	MT4
Fuel category	diesel

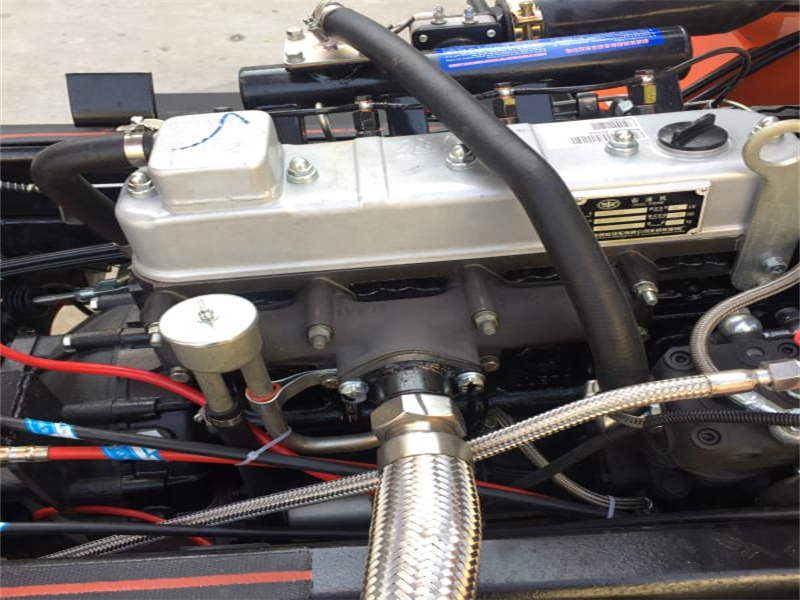

Engine model	Xichai490
Engine power	46KW(63hp)

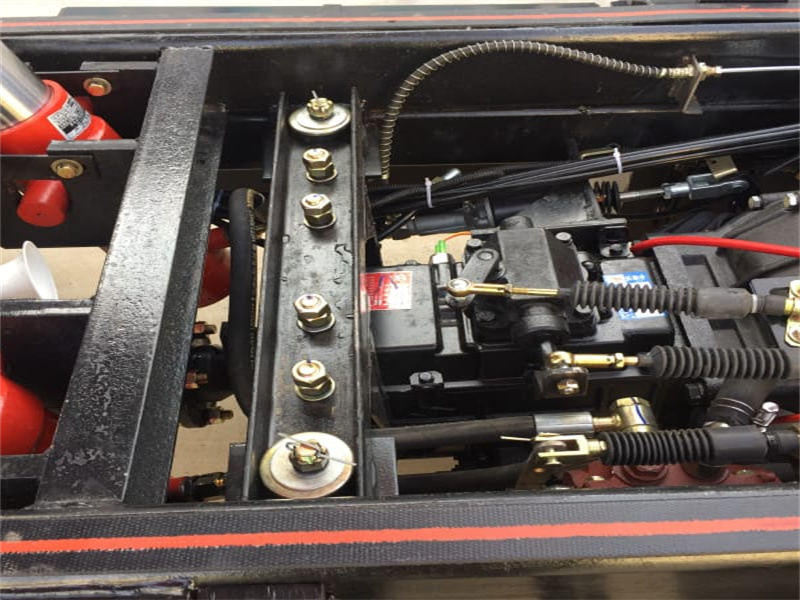

gearbox model	528

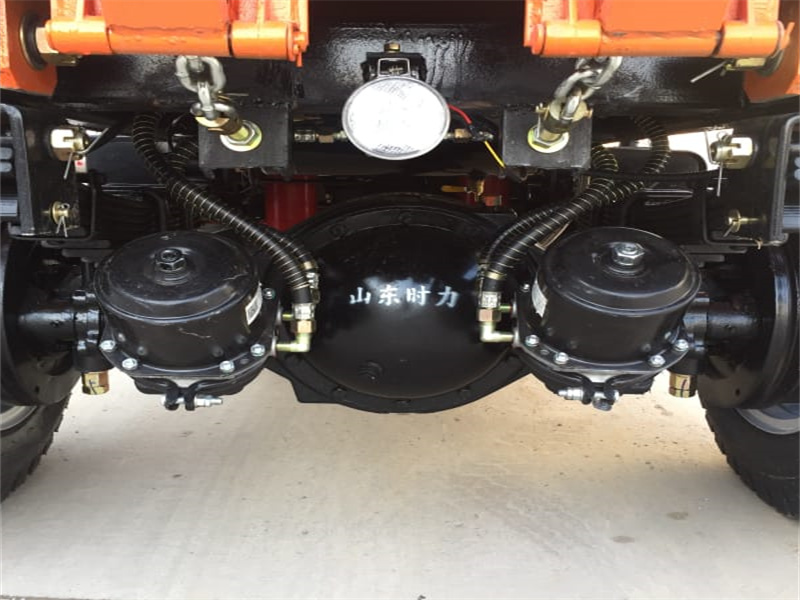

rear axle	S1069
front axle	S176
Drive mode,	Rear drive
Brak in g method	Wet brake
Front wheel track	1380mm
Rear   wheel track	1350mm
wheelbase	2300mm
Frame	Main beam: he ig ht 120mm * w idth 60mm * th ickness 8mm,Bottom beam: height 80mm * width 60mm * thickness 6mm
Unloading method	rear unloading 90*700mm double support
front model	600-14
rear model	650-16 wire tire (single tire)
overall dimension	Lenght4150mm*width1380mm*height1300mm height of the shed 1.9m
cargo box dimension	Length2500mm*width1300mm*heght450mm
cargo box plate thickness	Bottom 8mm side 5mm
steering system	Hydraulic steering
Leaf springs	Front leaf springs :7pieces*width70mm*thickness12mm Rear leaf springs:9pieces*width70mm*thickness12mm
cargo box volume(m³)	1.3
load capacity /ton	4

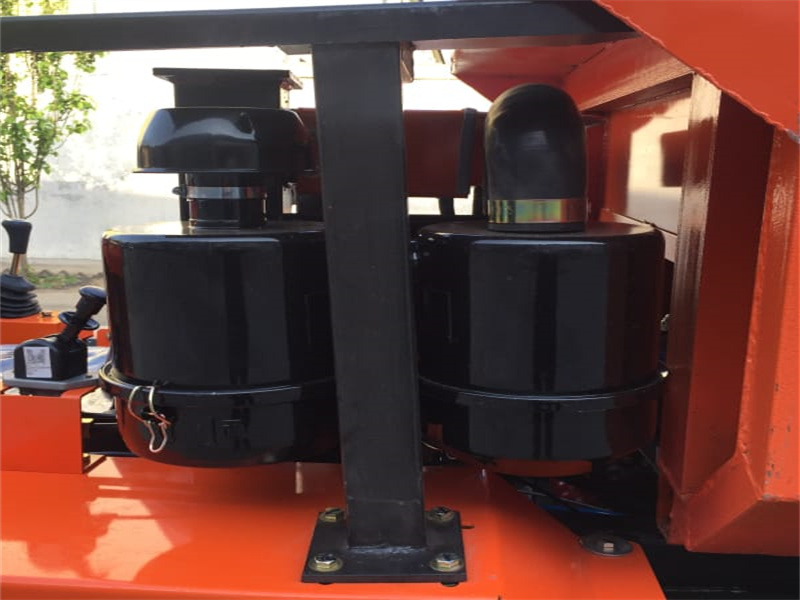

Exhaust gas treatment method	Exhaust gas purifier
ground clearance	180mm

1. Does the vehicle meet safety standards? Yes, our mining dump trucks meet international safety standards and have undergone a number of rigorous safety tests and certifications. 2. Can I customize the configuration? Yes, we can customize the configuration according to customer needs to meet the needs of different work scenarios. 3. Which materials are used in body building? We use high-strength wear-resistant materials to build our bodies, ensuring good durability in harsh working environments. 4. What are the areas covered by after-sales service? Our extensive after-sales service coverage allows us to support and service customers around the world.We offer a comprehensive after-sales service, including: 1. Give customers comprehensive product training and operation guidance to ensure that customers can correctly use and maintain the dump truck. 2. Provide rapid response and problem solving technical support team to ensure that customers are not troubled in the process of use. 3. Provide original spare parts and maintenance services to ensure that the vehicle can maintain good working condition at any time. 4. Regular maintenance services to extend the life of the vehicle and ensure that its performance is always maintained at its best.The overall dimensions of the truck are 4150mm in length, 1380mm in width, and 1300mm in height. The cargo box measures 2500mm in length, 1300mm in width, and 450mm in height. The cargo box is constructed with an 8mm thick bottom plate and 5mm thick side plates, providing sufficient load-carrying capacity and durability.MT4 features a hydraulic steering system, ensuring flexible handling. The suspension system consists of 7 pieces of 70mm wide and 12mm thick front leaf springs and 9 pieces of 70mm wide and 12mm thick rear leaf springs, offering a comfortable ride and effective absorption of road vibrations.The cargo box volume is 1.3 cubic meters, and it can carry a load of 4 tons, making it suitable for material transportation in mining areas. In addition, the vehicle is equipped with an exhaust gas purifier to reduce emissions and minimize its environmental impact.With a ground clearance of 180mm, MT4 can handle challenging road conditions. Overall, MT4 is a fully functional mining truck with high load-carrying capacity and excellent handling, suitable for material transportation and related tasks in mining areas.This self-dumping truck adopts a rear-drive mode with S1069 rear axle and S176 front axle. The braking system uses wet brakes for effective stopping power. With a front wheel track of 1380mm and a rear wheel track of 1350mm, along with a wheelbase of 2300mm, the vehicle ensures stability and maneuverability.
