Product  model	MT5
Fuel category	diesel

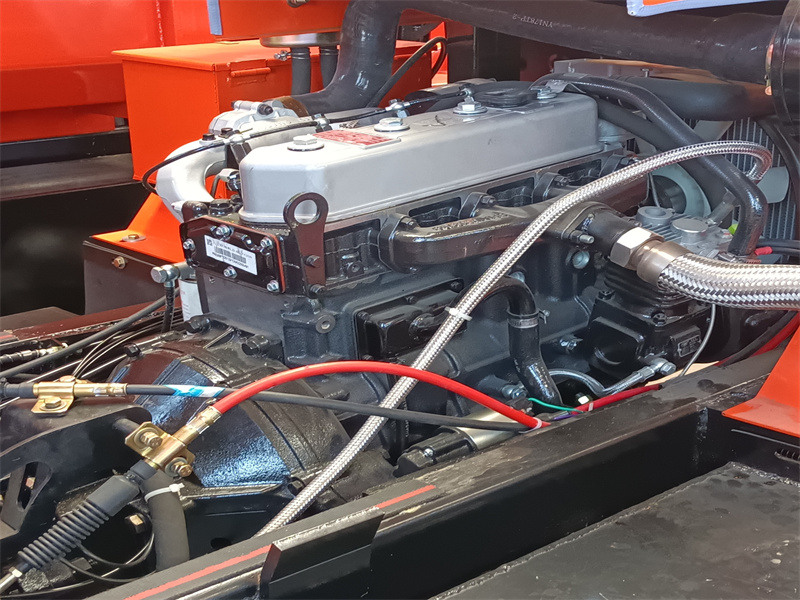

Engine  model	Xichai490
Engine  power	46KW(63hp)
gearbox  model	530(12-speed high and low speed)
rear axle	DF1069
front axle	SL178
Drive  mode,	rear drive
Braki ng method	automatically air-cut brake
Front wheel track	1630mm
Rear wheel track	1630mm
wheelbase	2400mm

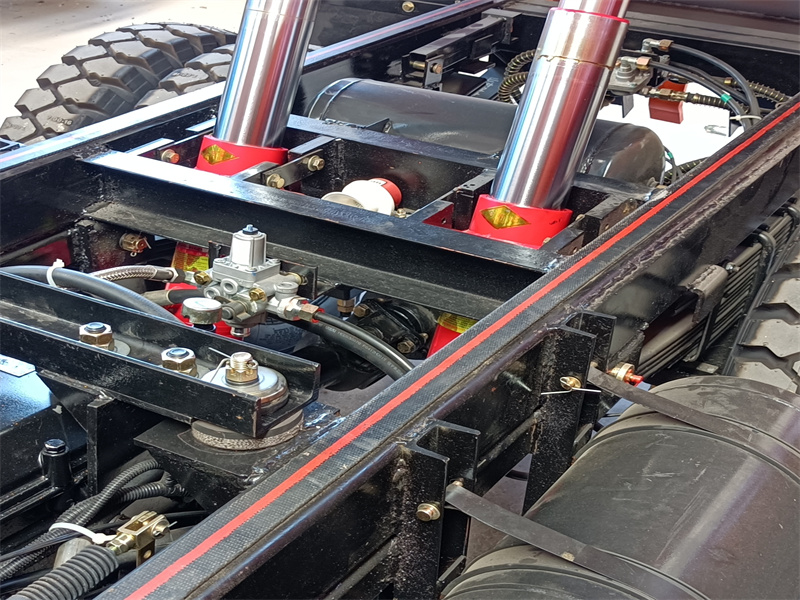

frame	Main beam: height 120mm * width 60mm * thickness 8mm, Bottom beam: height 60mm * width 80mm * thickness 6mm

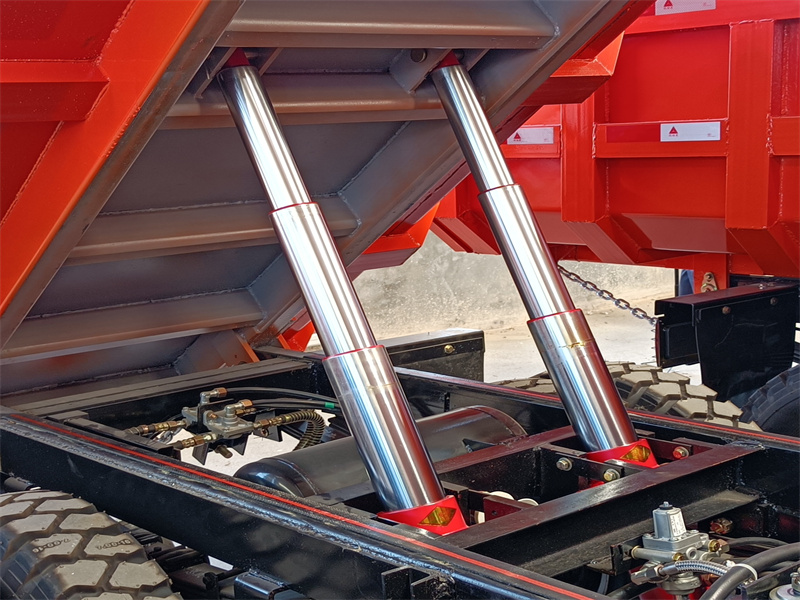

Unloading  method	rear unloading 90*800 double support
front model	700-16wire tire
rear model	700-16 wire tire (double tire)
overall dimension	Lenght4900mm*width1630mm*height1400mm           height of the shed 1.9m
cargo box dimension	Length3100mm*width1600mm*heght500mm
cargo box plate thickness	Bottom  8mm  side  5mm
steering system	Hydraulic steering
Leaf springs	Front leaf springs :9pieces*width70mm*thickness12mm Rear  leaf  springs:13pieces*width70mm*thickne ss12m m
cargo box volume(m³)	2.2
load capacity /ton	5
climbing ability	12°
Exhaust gas treatment method,	Exhaust gas purifier
Ground clearance	200mm
Displacement	2.54L(2540CC)

1. Does the vehicle meet safety standards? Yes, our mining dump trucks meet international safety standards and have undergone a number of rigorous safety tests and certifications. 2. Can I customize the configuration? Yes, we can customize the configuration according to customer needs to meet the needs of different work scenarios. 3. Which materials are used in body building? We use high-strength wear-resistant materials to build our bodies, ensuring good durability in harsh working environments. 4. What are the areas covered by after-sales service? Our extensive after-sales service coverage allows us to support and service customers around the world.We offer a comprehensive after-sales service, including: 1. Give customers comprehensive product training and operation guidance to ensure that customers can correctly use and maintain the dump truck. 2. Provide rapid response and problem solving technical support team to ensure that customers are not troubled in the process of use. 3. Provide original spare parts and maintenance services to ensure that the vehicle can maintain good working condition at any time. 4. Regular maintenance services to extend the life of the vehicle and ensure that its performance is always maintained at its best.The front wheels are equipped with 700-16 wire tires, while the rear wheels have 700-16 wire tires (double tires). The overall dimensions of the truck are 4900 mm (length) × 1630 mm (width) × 1400 mm (height), with a shed height of 1.9 meters. The cargo box measures 3100 mm (length) × 1600 mm (width) × 500 mm (height), and the thickness of the cargo box plates is 8 mm for the bottom and 5 mm for the sides.The steering system uses hydraulic steering, and the suspension system comprises 9 front leaf springs with a width of 70 mm and a thickness of 12 mm, as well as 13 rear leaf springs with a width of 70 mm and a thickness of 12 mm. The cargo box volume is 2.2 cubic meters, and it has a load capacity of 5 tons. The truck can handle a climbing angle of up to 12 degrees.Exhaust gases are treated with an exhaust gas purifier, and the ground clearance is 200 mm. The engine displacement is 2.54 liters (2540 cc).The frame consists of main beams and bottom beams, with dimensions of 120 mm (height) × 60 mm (width) × 8 mm (thickness) for the main beam and 60 mm (height) × 80 mm (width) × 6 mm (thickness) for the bottom beam. It unloads from the rear with a 90-degree, 800 mm double support system.
